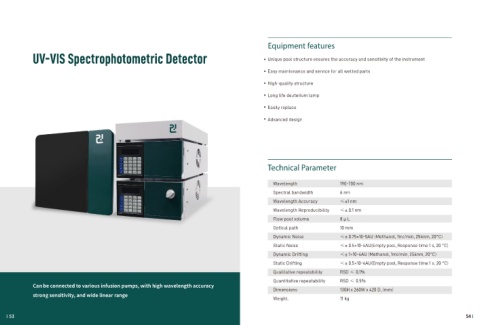

Page 28 - PJ Product e-Book Manual
P. 28
UV-VIS Spectrophotometric Detector Unique pool structure ensures the accuracy and sensitivity of the instrument
Easy maintenance and service for all wetted parts
High-quality structure
Long life deuterium lamp
Easily replace
Advanced design
Wavelength 190-700 nm
Spectral bandwidth 6 nm
Wavelength Accuracy ±1 nm
Wavelength Reproducibility ± 0.1 nm
Flow pool volume 8 µ L
Optical path 10 mm
Dynamic Noise ± 0.75×10-5AU (Methanol, 1ml/min, 254nm, 20°C)
Static Noise ± 0.5×10-5AU(Empty pool, Response time 1 s, 20 °C)
Dynamic Drifting ± 1×10-4AU (Methanol, 1ml/min, 254nm, 20°C)
Static Drifting ± 0.5×10-4AU(Empty pool, Response time 1 s, 20 °C)
Qualitative repeatability RSD 0.1%
Quantitative repeatability RSD 0.5%
Can be connected to various infusion pumps, with high wavelength accuracy
Dimensions 130H x 260W x 420 D, (mm)
strong sensitivity, and wide linear range
Weight. 11 kg
�� ��
