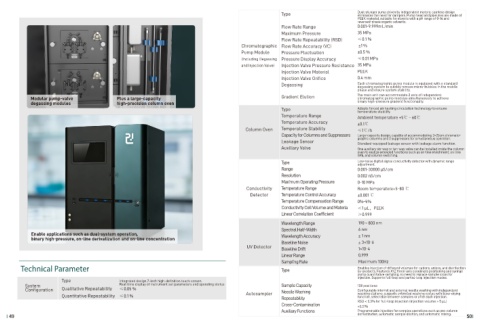

Page 26 - PJ Product e-Book Manual

Type Dual-plunger pump driven by independent motors; camless design
eliminates the need for dampers. Pump head and pipelines are made of
PEEK material, suitable for eluents with a pH range of 0–14 and
reversed-phase organic solvents.
Flow Rate Range 0.001-9.999mL/min
Maximum Pressure 35 MPa
Flow Rate Repeatability (RSD) ›0.1 %
Chromatographic Flow Rate Accuracy (VC) ±1 %
Pump Module Pressure Fluctuation ±0.5 %

(Including Degassing Pressure Display Accuracy ›0.01 MPa
and Injection Valve) Injection Valve Pressure Resistance 35 MPa
Injection Valve Material PEEK
Injection Valve Orifice 0.4 mm
Degassing Each chromatographic pump module is equipped with a standard
degassing system to quickly remove micro-bubbles in the mobile
phase and ensure system stability.
Modular pump-valve Plus a large-capacity Gradient Elution The main unit can accommodate 2 sets of independent
chromatographic pump modules simultaneously to achieve
degassing modules high-precision column oven binary high-pressure gradient functionality.
Type Adopts forced air heating circulation technology to ensure
temperature stability.
Temperature Range Ambient temperature +5¥ – 60¥
Temperature Accuracy ±0.1¥
Column Oven Temperature Stability ›1¥/h
Capacity for Columns and Suppressors Large-capacity design, capable of accommodating 3×25cm chromato-
graphic columns and 2 suppressors for simultaneous operation.
Leakage Sensor Standard-equipped leakage sensor with leakage alarm function.
Auxiliary Valve One auxiliary six-way or ten-way valve can be installed inside the column
oven to realize extended functions such as on-line enrichment, on-line
SPE, and column switching.
Type Low-noise digital signal conductivity detector with dynamic range
adjustment.
Range 0.001–30000 µS/cm
Resolution 0.002 nS/cm
Maximum Operating Pressure 0–10 MPa
Conductivity Temperature Range Room temperature+5–80 ¥
Detector Temperature Control Accuracy ±0.001 ¥
Temperature Compensation Range 0%–5%
Conductivity Cell Volume and Materia ġ1 µLđPEEK
Linear Correlation Coefficient œ0.999
Wavelength Range 190 – 800 nm
Spectral Half-Width 6 nm
Enable applications such as dual-system operation, Wavelength Accuracy ± 1 nm
binary high-pressure, on-line derivatization and on-line concentration
Baseline Noise ± 3×10-6
UV Detector Baseline Drift 1×10-4
Linear Range 0.999
Sampling Rate Maximum 100Hz
 Type Enables injection of different volumes for cations, anions, and disinfection
by-products. Features XYZ three-axis coordinate positioning and syringe
pump quantitative sampling; no need to replace sample loops for
injection. Supports full-loop and partial-loop injection modes.
Type integrated design 7-inch high-definition touch screen
System Real time display of instrument set parameters and operating status Sample Capacity 108 positions
Configuration Qualitative Repeatability ›0.05 % Needle Washing Configurable internal and external needle washing with independent
Quantitative Repeatability ›0.1 % Autosampler washing stations; supports unlimited washing cycles with blow-drying
function, selectable between samples or after each injection.
Repeatability RSD < 0.3% for full-loop injection (injection volume > 5 µL)
Cross-Contamination <0.01%
Auxiliary Functions Programmable injection for complex operations such as pre-column
�� derivatization, automatic sample dilution, and automatic mixing. ��
