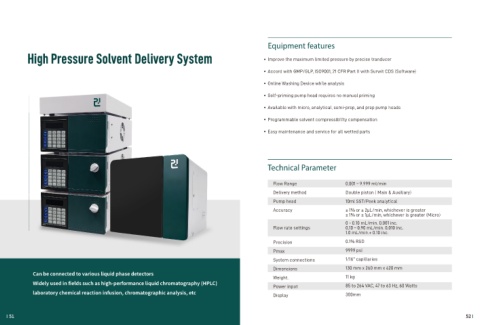

Page 27 - PJ Product e-Book Manual

High Pressure Solvent Delivery System Improve the maximum limited pressure by precise tranducer

Accord with GMP/GLP, ISO9001, 21 CFR Part II with Surwit CDS (Software)

Online Washing Device while analysis

Self-priming pump head requires no manual priming

Available with micro, analytical, semi-prep, and prep pump heads

Programmable solvent compressibility compensation

Easy maintenance and service for all wetted parts



Flow Range 0.001 – 9.999 ml/min

Delivery method Double piston ( Main & Auxiliary)

Pump head 10ml SST/Peek analytical
Accuracy ± 1% or ± 2µL/min, whichever is greater
± 1% or ± 1µL/min, whichever is greater (Micro)
0 - 0.10 mL/min. 0.001 inc.
Flow rate settings 0.10 – 0.90 mL/min. 0.010 inc.
1.0 mL/min.+ 0.10 inc.
Precision 0.1% RSD

Pmax 9999 psi

System connections 1/16’’ capillaries

Dimensions 130 mm x 260 mm x 420 mm
Can be connected to various liquid phase detectors
Weight. 11 kg
Widely used in fields such as high-performance liquid chromatography (HPLC)
Power input 85 to 264 VAC, 47 to 63 Hz, 60 Watts
laboratory chemical reaction infusion, chromatographic analysis, etc 300mm
Display

�� ��
