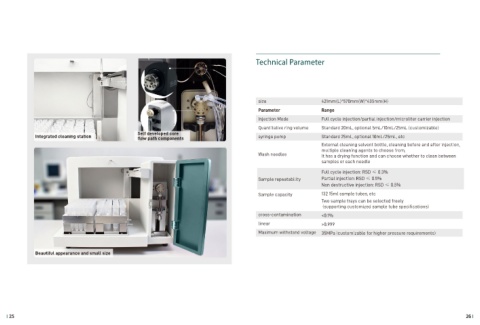

Page 14 - PJ Product e-Book Manual



size 421mm(L)*570mm(W)*435mm(H)
Parameter Range

Injection Mode Full cycle injection/partial injection/microliter carrier injection

Quantitative ring volume Standard 20mL, optional 5mL/10mL/25mL (customizable)
Self developed core
Integrated cleaning station flow path components syringe pump Standard 25mL, optional 10mL/25mL, etc
External cleaning solvent bottle, cleaning before and after injection,
multiple cleaning agents to choose from,
Wash needles It has a drying function and can choose whether to clean between
samples or each needle

Full cycle injection: RSD › 0.3%
Sample repeatability Partial injection: RSD › 0.5%
Non destructive injection: RSD › 0.5%

Sample capacity 132 15ml sample tubes, etc
Two sample trays can be selected freely
(supporting customized sample tube specifications)

cross-contamination <0.1%

linear >0.999
Maximum withstand voltage 35MPa (customizable for higher pressure requirements)

Beautiful appearance and small size

�� ��
