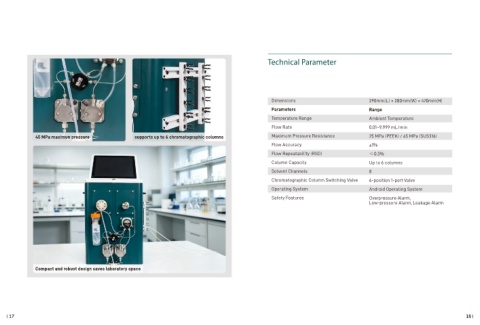

Dimensions 290mm(L) × 280mm(W) × 470mm(H)
Parameters Range
Temperature Range Ambient Temperature
Flow Rate 0.01~9.999 mL/min
45 MPa maximun pressure supports up to 6 chromatographic columns Maximum Pressure Resistance 25 MPa (PEEK) / 45 MPa (SUS316)
Flow Accuracy ±1%
Flow Repeatability (RSD) 0.3%
Column Capacity Up to 6 columns
Solvent Channels 8
Chromatographic Column Switching Valve 6-position 1-port Valve
Operating System Android Operating System
Safety Features Overpressure Alarm,
Low-pressure Alarm, Leakage Alarm
Compact and robust design saves laboratory space
�� ��
