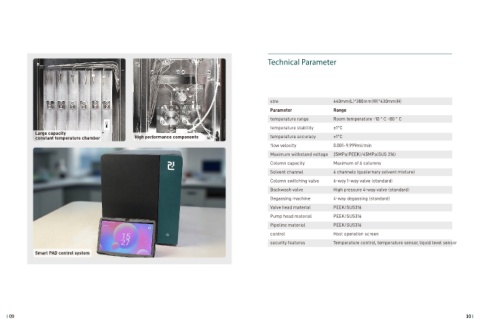

size 440mm(L)*380mm(W)*430mm(H)
Parameter Range
temperature range Room temperature -10 ° C -80 ° C
temperature stability ±1°C
Large capacity
constant temperature chamber High performance components temperature accuracy ±1°C
flow velocity 0.001~9.999ml/min
Maximum withstand voltage 25MPa(PEEK)/45MPa(SUS 316)
Column capacity Maximum of 6 columns
Solvent channel 4 channels (quaternary solvent mixture)
Column switching valve 6-way 1-way valve (standard)
Backwash valve High pressure 4-way valve (standard)
Degassing machine 4-way degassing (standard)
Valve head material PEEK/SUS316
Pump head material PEEK/SUS316
Pipeline material PEEK/SUS316
control Host operation screen
security features Temperature control, temperature sensor, liquid level sensor
Smart PAD control system
�� ��
