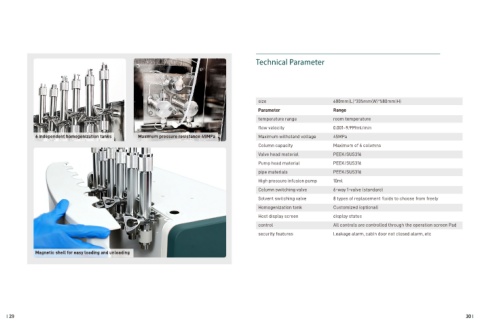

Page 16 - PJ Product e-Book Manual
P. 16
size 600mm(L)*335mm(W)*580mm(H)
Parameter Range
temperature range room temperature
flow velocity 0.001~9.999ml/min
6 independent homogenization tanks Maximum pressure resistance 45MPa Maximum withstand voltage 45MPa
Column capacity Maximum of 6 columns
Valve head material PEEK/SUS316
Pump head material PEEK/SUS316
pipe materials PEEK/SUS316
High pressure infusion pump 10ml
Column switching valve 6-way 1-valve (standard)
Solvent switching valve 8 types of replacement fluids to choose from freely
Homogenization tank Customized (optional)
Host display screen display status
control All controls are controlled through the operation screen Pad
security features Leakage alarm, cabin door not closed alarm, etc
Magnetic shell for easy loading and unloading
�� ��
